AP-1319-ST, AP-1925-ST
Omni Display
AP-1319-ST, AP-1925-ST

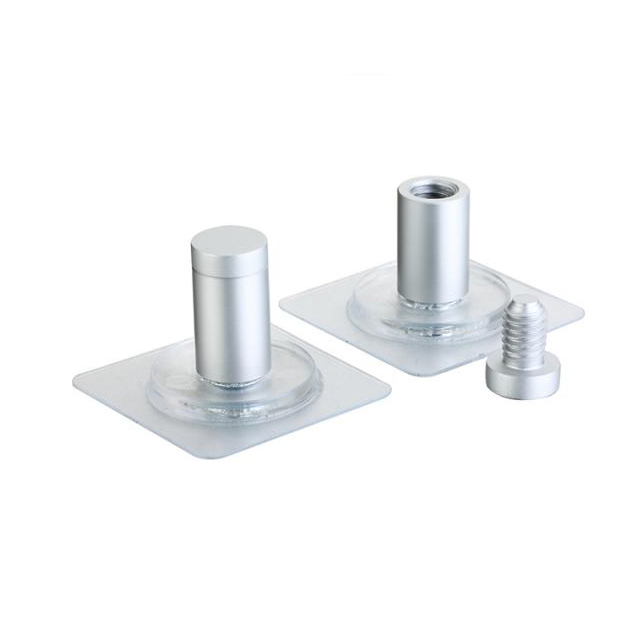

Aluminium Self Adhesive Sign Standoffs are commonly used for attaching or displaying items such as glass panels, signage, or lightweight structures. Their sleek aluminum design and adhesive backing suggest they’re suitable for a variety of surfaces.
Feature:
Adhesive Backing
High-strength adhesive base for secure attachment to smooth surfaces like glass, metal, or walls. No need for drilling or damaging the surface.

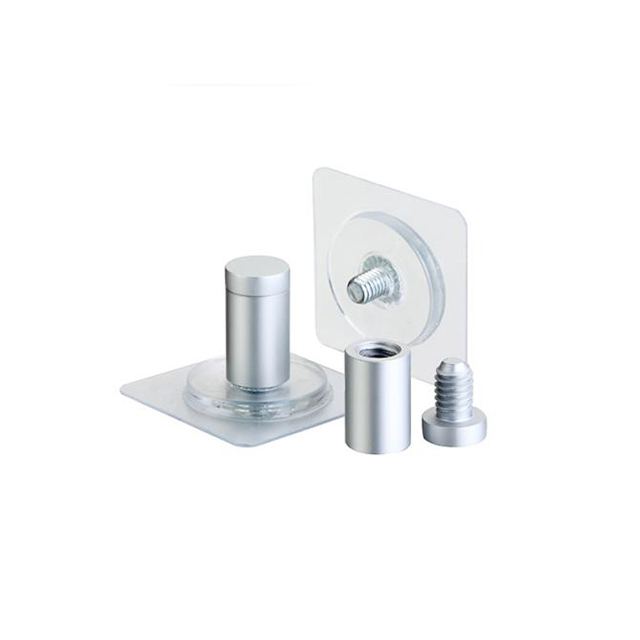

Multi-Part Design
Composed of a base, a magnetic top, and a connecting screw/thread for added versatility. Adjustable or interchangeable parts for various applications.
Compact and Lightweight
Space-saving design with minimal visual clutter. Easy to transport and install.
Specification:
| Item No | | |
| AP-1319-ST | AP-1925-ST | |
| Diameter | 13mm | 19mm |
| Cap Thickness | 4mm | 6mm |
| Screw Length | 11.5mm | 16.5mm |
| Screw Diameter | 8mm | 10mm |
| Spacer | 19mm | 25mm |
| Panel Hole | 8mm | 10mm |
| Max Panel Thickness | 6mm | 10mm |
| Max Load(2PCS) | 2KGS | 2KGS |
| Max Load(4PCS) | 3KGS | 3KGS |
Application:
Suitable for all smooth surface
| |
