What Is A SEG Lightbox?

Introduction — Quick Definition and Context

A SEG lightbox (Silicone Edge Graphics lightbox) is a framed, backlit display system that uses tensioned dye-sublimated fabric graphics with a thin silicone beading sewn into the edge. The silicone bead (the ''SEG'') tucks into a recessed channel in the frame, stretching the fabric smooth for a seamless, edge-to-edge print. SEG lightboxes are widely used for high-impact retail signage, trade show displays, office branding, and architectural backlit graphics in the USA.

How A SEG Lightbox Works (Technology & Components)

A typical SEG lightbox contains three core components:

• Aluminum frame with a recessed channel that accepts silicone beading. Frames are lightweight, durable, and often modular.

• Silicone edge graphics (the printed fabric) — typically polyester fabric printed by dye-sublimation. A thin silicone extrusion is sewn into the perimeter hem of the fabric.

• Backlighting system — usually LED strips or panels mounted inside the frame to provide even illumination.

Installation is straightforward: the fabric is stretched and the silicone bead is inserted into the frame channel all around. The tension produces a flat, wrinkle-free surface with a near-seamless appearance and vibrant, evenly lit colors.

Why LED Lighting?

LEDs are the standard for SEG lightboxes because they are energy-efficient, long-lasting, and produce consistent, cool light that enhances print saturation. Modern LED channels are designed to minimize hot spots and deliver uniform brightness across even large-format SEG displays.

Types And Sizes of SEG Lightboxes

SEG lightboxes come in many shapes and formats:

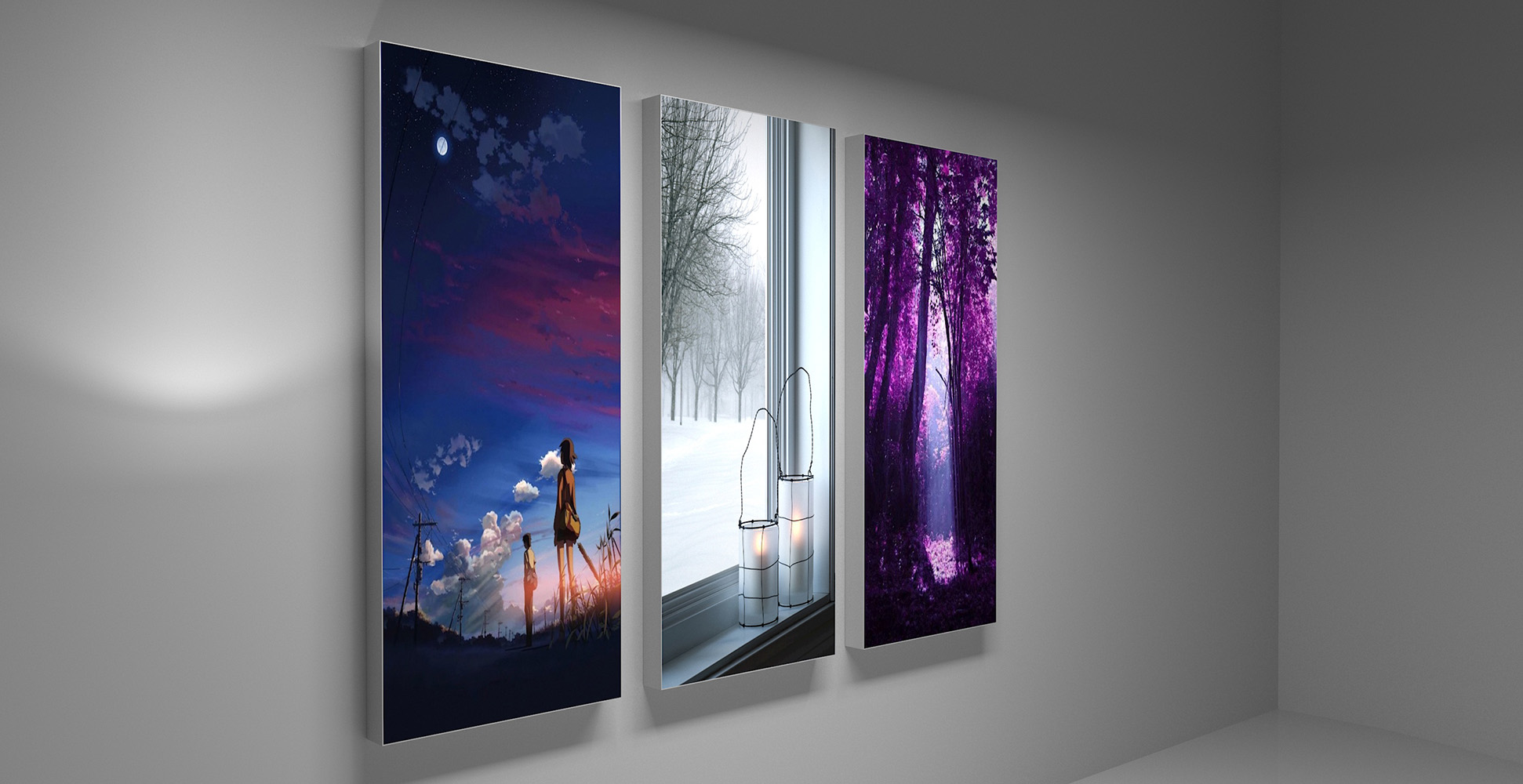

• Wall-mounted backlit frames — common in retail and corporate lobbies.

• Freestanding lightboxes — double-sided or single-sided, ideal for corridors and exhibition aisles.

• Ceiling-hung or suspended lightboxes — for airports and large open spaces.

• Curved or custom-shaped frames — for brand-unique installations or sculptural signage.

Sizes range from small poster-sized frames to massive architectural panels several meters wide. Because frames are modular, they scale well for both small stores and large venues.

Key Benefits

• Seamless, edge-to-edge graphics: The silicone bead hides the frame and creates a borderless visual.

• Vibrant, backlit imagery: Dye-sublimation on fabric looks rich and consistent when illuminated.

• Easy changeability: Swap printed fabric quickly for new promotions or seasonal graphics.

• Lightweight & low profile: Aluminum frames keep the overall system lightweight and suitable for many mounting conditions.

• Durability & reusability: Fabrics resist fading; frames can be reused for multiple campaigns.

• Lower shipping costs: Fabric graphics fold (not roll in tubes), reducing freight volume compared with rigid substrates.

Materials, Specifications, And Print Considerations

• Fabric: Polyester knit or stretch fabrics designed for dye-sublimation. Choose material with high opacity to prevent light bleed.

• Printing: Dye-sublimation yields vivid, long-lasting colors and photographic detail. Use CMYK profiles recommended by your printer.

• Silicone bead size: Typical bead widths are 3–6 mm; match bead size to the frame channel.

• Frame finish: Anodized or powder-coated aluminum in black, white, or custom finishes to match interiors.

When preparing artwork, account for a small bleed and avoid placing critical elements too close to the edge where the seam and tension meet the frame.

Installation, Maintenance, And Lighting Options

• Installation: Most SEG lightboxes are simple to mount with wall brackets or freestanding bases. Larger panels may require professional installation for structural safety.

• Maintenance: Remove and wash fabric if needed (follow the manufacturer's care instructions). Periodically check LED drivers and strips for performance.

• Lighting options: Choose between edge-lit LED strips for slimmer profiles or back-panel LEDs for maximum uniformity in large installations. Dimmable drivers add control for ambiance.

Common Applications And use Cases

• Retail and point-of-sale: Change promotional graphics quickly to reflect new campaigns.

• Trade shows and events: Portable SEG frames present high-impact visuals with low setup time.

• Corporate branding: Lobby lightboxes create a premium, illuminated brand statement.

• Hospitality and restaurants: Menus, murals, and wayfinding benefit from soft, even backlighting.

• Transportation hubs: Durable, large-scale SEG lightboxes are used for advertising and signage.

Buying Guide: What to Compare When Choosing A SEG Lightbox

When selecting a SEG lightbox for a U.S. installation, compare:

• Frame quality & warranty: Anodized/powder-coated aluminum and a multi-year warranty indicate robust manufacturing.

• LED system uniformity: Ask for sample panels or manufacturer photos showing even illumination.

• Printing partner capability: Ensure dye-sublimation prints on recommended fabric with accurate color profiles.

• Ease of graphic replacement: Check if the graphic is simple to remove and reinstall — important for frequent updates.

• Certifications & safety: For public spaces, confirm UL-listed drivers and compliance with local electrical codes.

• Turnaround & shipping: For time-sensitive campaigns, prioritize vendors with fast production and reliable domestic shipping.

Conclusion — When to Choose SEG Over Alternatives

Choose a SEG lightbox when you need a high-impact, professional backlit display that's easy to update and visually seamless. SEG lightboxes outperform traditional poster frames and vinyl banners in terms of image quality, appearance, and reusability — making them a strong choice for retailers, event organizers, corporate branding teams, and designers across the USA.

If your project requires regular graphic changes, low shipping cost, and premium illuminated presentation, a SEG lightbox is likely the best option. For very low-budget, short-term signage, non-lit options may still be viable, but for lasting brand impact and flexible installations, SEG lightboxes deliver exceptional value.
